Planar curvature in an element cross section is defined by the equation below, with reference to the Angle Convention for Planar Curvature figure below.

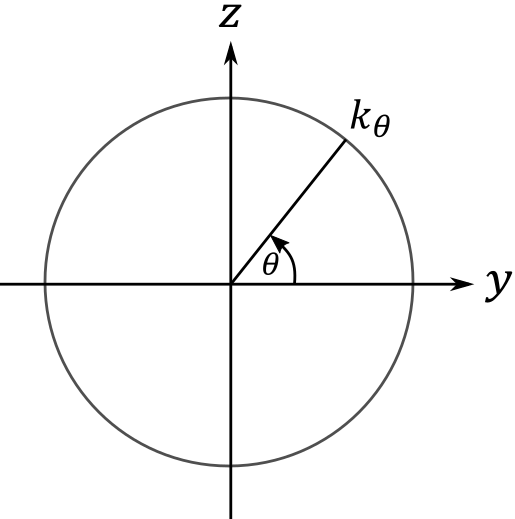

Angle Convention for Planar Curvature
where:
•
is the curvature for an angle θ as defined in the figure above
•
and
are the curvatures about the local y- and z-axes, respectively
By default, Flexcom outputs the planar curvature at an angle of 0 degrees. However, when you request a plot of planar curvature, you can optionally specify a location around the element circumference where planar curvature is to be computed. The location is specified as an angle θ, measured in degrees anti-clockwise from the local element cross-section y-axis.
