Wave Induced Motion RAOs |

|
Wave Induced Motion RAOs |
|
Wave induced motion RAOs are computed using a series of regular wave simulations at various periods, in this case going from 2.5s to 30.0s in 0.5s increments. The AeroDyn module is disabled so that the effects of aerodynamic loading are not considered. The assessment focuses one heading only (head seas), so only the RAOs relating to surge, heave, and pitch are relevant. The example contains separate sections to compute RAOs for both a free-floating platform and a moored platform.
The published report on the UMaine semisub (Allen et al., 2020) presents RAOs in graph form only. The underlying data is not supplied which makes comparisons between UMaine and Flexcom a little difficult.

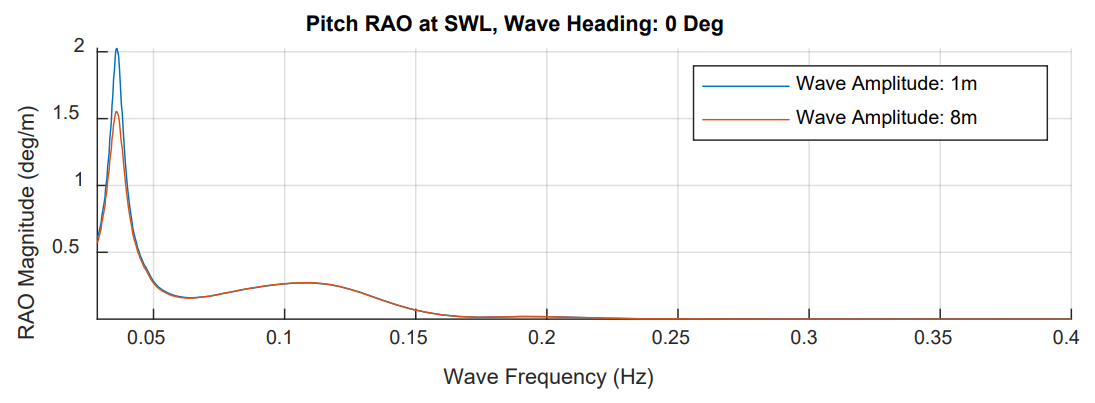

Allen et al., 2020

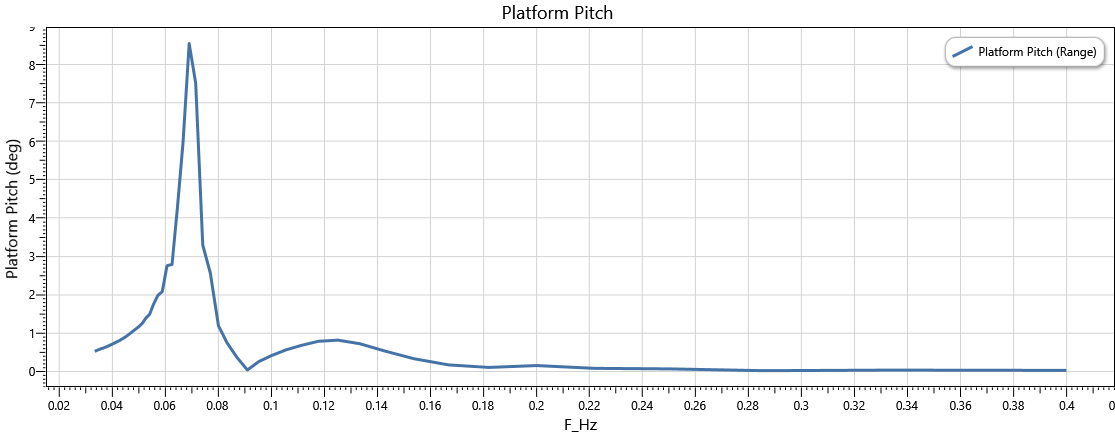

Flexcom - Free Floating Platform

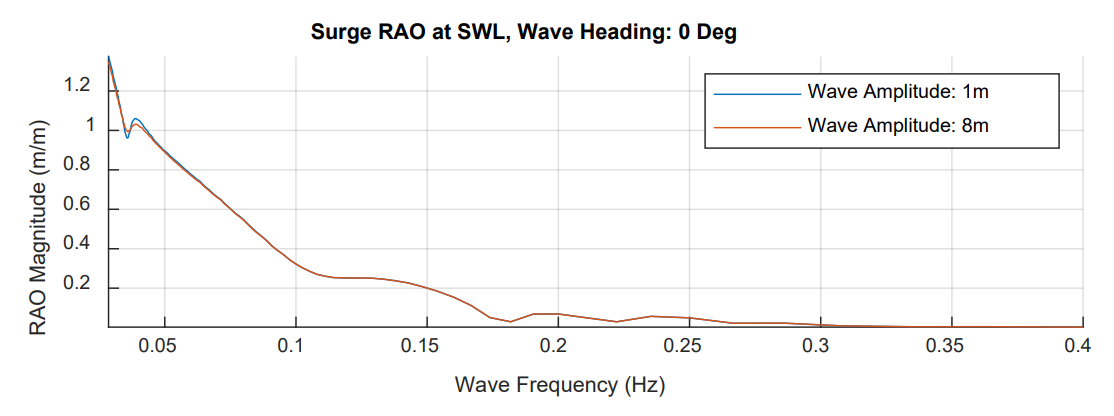

Allen et al., 2020

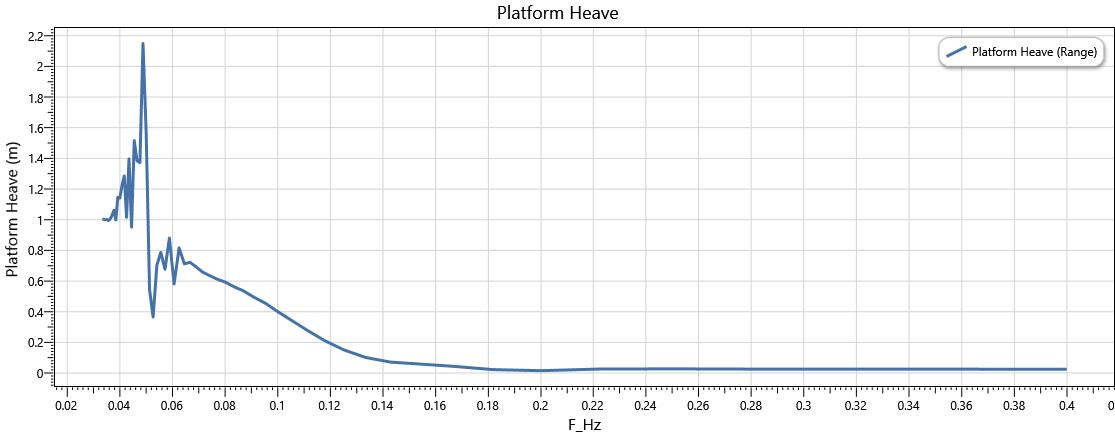

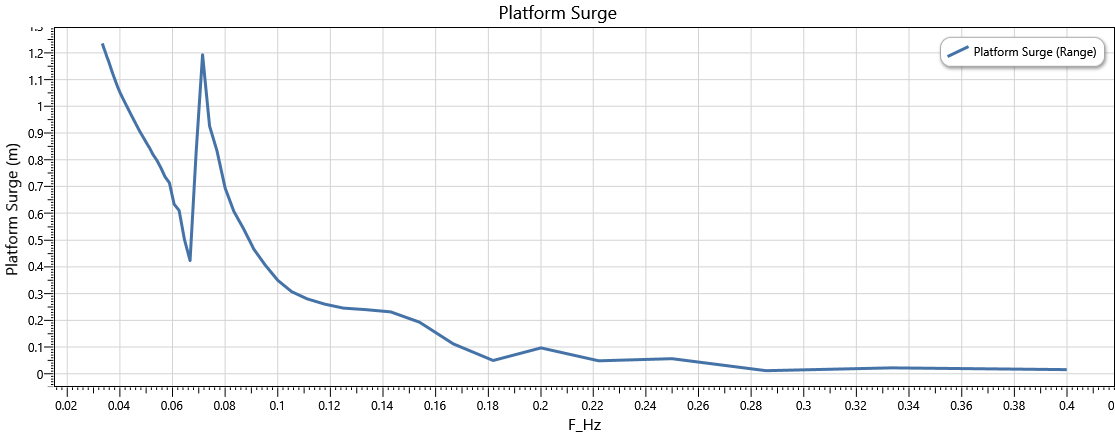

Flexcom - Free Floating Platform

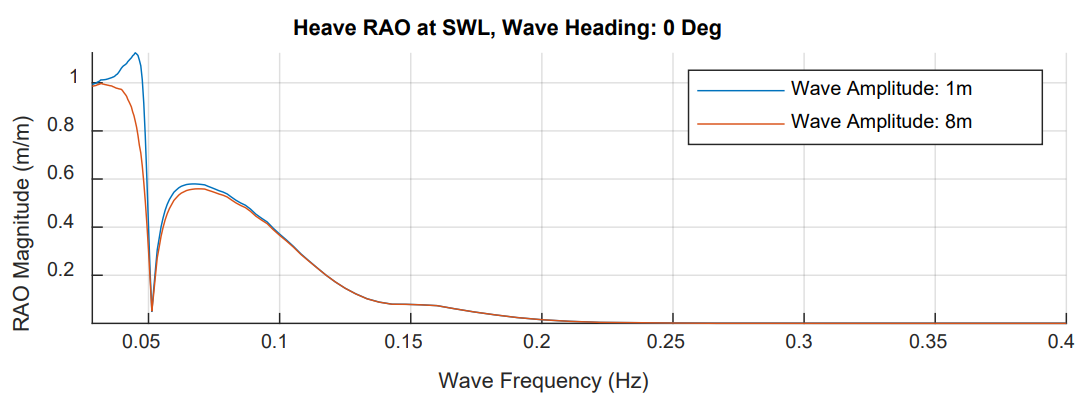

Allen et al., 2020
Flexcom - Free Floating Platform
