*Set Colours

Purpose

To assign a specific colour to an element set or sets.

Theory

Refer to Model View for further information on this feature.

Keyword Format

A single line defining element set and associated colour, repeated as often as necessary.

SET=Element Set, COLOUR=Set Colour

Note: Set Colour may be either predefined or user-defined. The predefined colour set is composed of 140 standard colours. User-defined colours may be defined using the *COLOUR DEFINE keyword.

Table Input

Notes

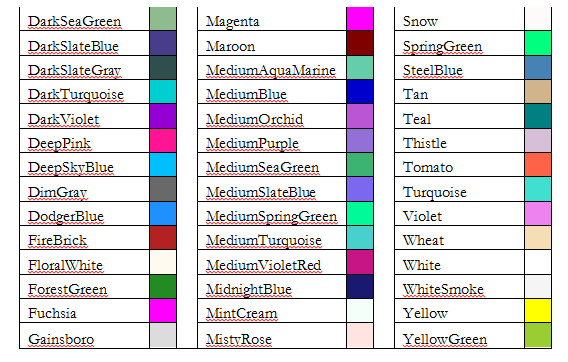

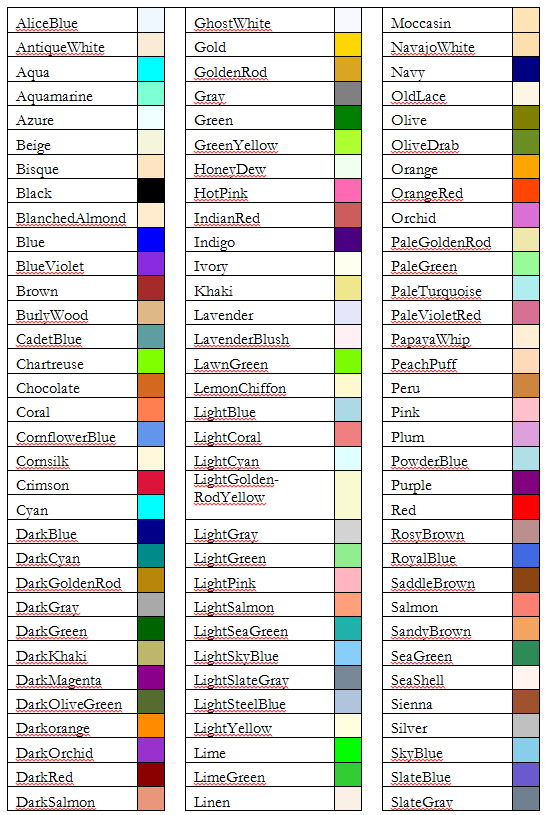

(a)The predefined set of colours and their names are listed below.
