Overview

If the sloping seabed option is invoked, a uniformly sloping seabed is modelled which passes through the global origin of co-ordinates. The seabed slope is specified in degrees, and a positive slope defines a seabed sloping upwards in the positive global Y direction, while a negative slope gives a seabed sloping in the opposite direction.

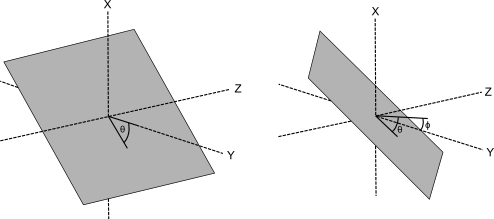

In addition to being able to specify the slope, elastic sloping seabed profiles can also be arbitrarily oriented about the global X axis. By default, the profile of a sloping seabed lies in the global XY plane. The orientation can be changed so that the sloping elastic seabed is rotated anti-clockwise about the global X axis by a user specified amount, ϕ, as shown in the figure below.

Profile_Sloping

Sloping Elastic Seabed Geometry

Relevant Keywords

•*SEABED PROFILE is used to specify the seabed profile/bathymetry.

•*SEABED PROPERTIES is used to specify properties such as seabed type (i.e. rigid or elastic) and friction parameters.

If you would like to see an example of a sloping seabed profile, refer to C01 - Free Hanging Catenary.
