Shear Force Sign Convention

The sign for the shear force (V) is found using the standard definition:

So the shear force distribution for the simple cantilever is a constant negative value as the bending moment distribution is linear with a negative slope.

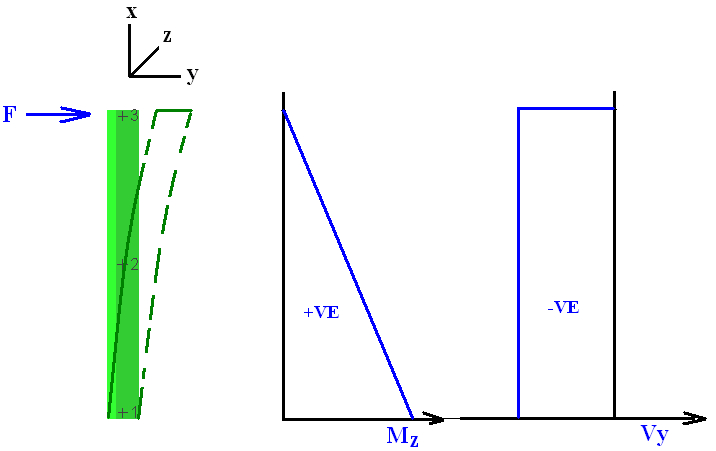

Cantilever Beam with Bending Moment and Shear Force Distributions
