Results

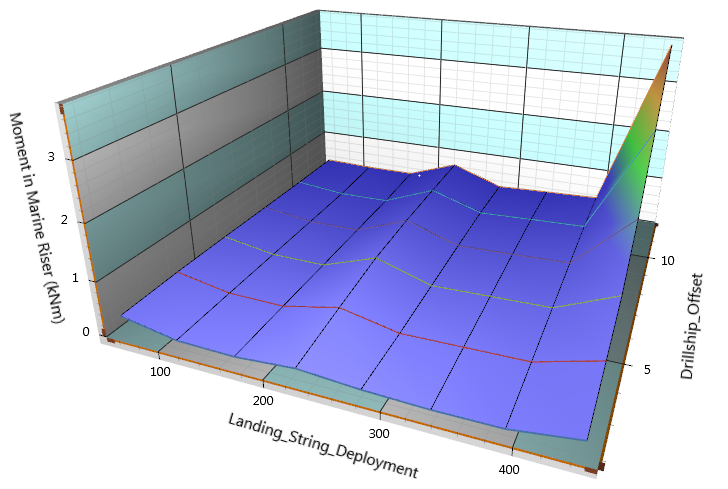

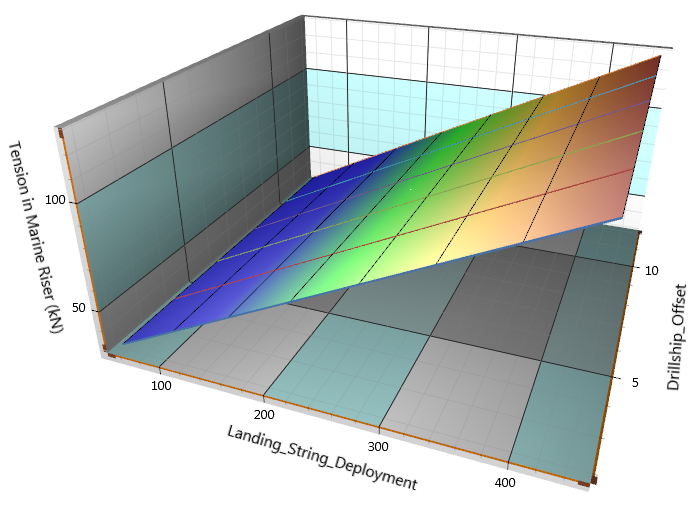

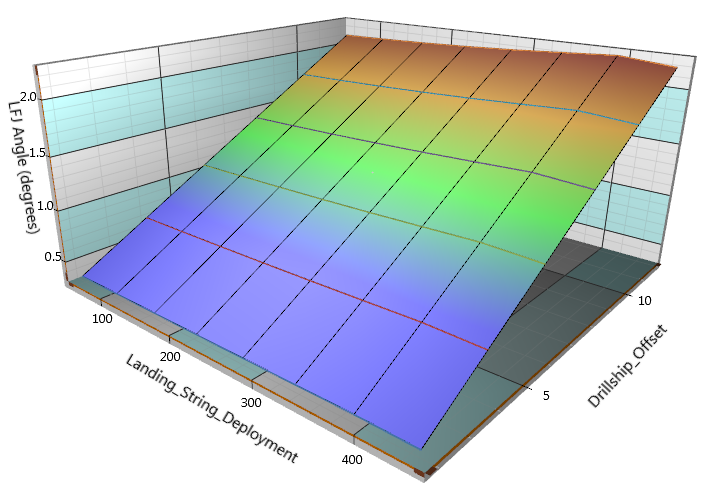

The following figures present the maximum lower flex joint angle, maximum effective tension in the landing string, and maximum bending moment in the landing string, over the course of the deployment process. The parameter of interest is shown on the vertical axis, while the model variations (i.e. deployed length of landing string and lateral vessel) are shown on the horizontal axes.
