Results

The first figure below presents the overall configuration of the TLP riser system, including and excluding wake interference effects. Naturally the configuration of the drilling riser is the same in both cases, but the configuration of the production riser varies considerably. The second figure presents the clearance between risers.

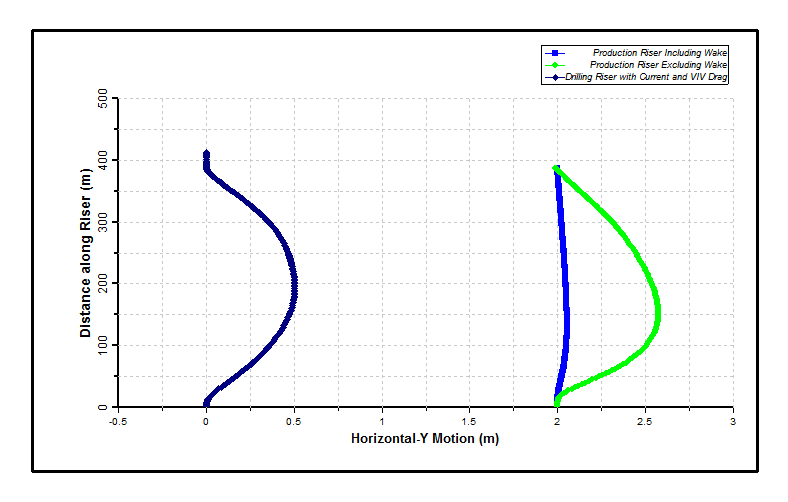

TLP Riser System Configuration

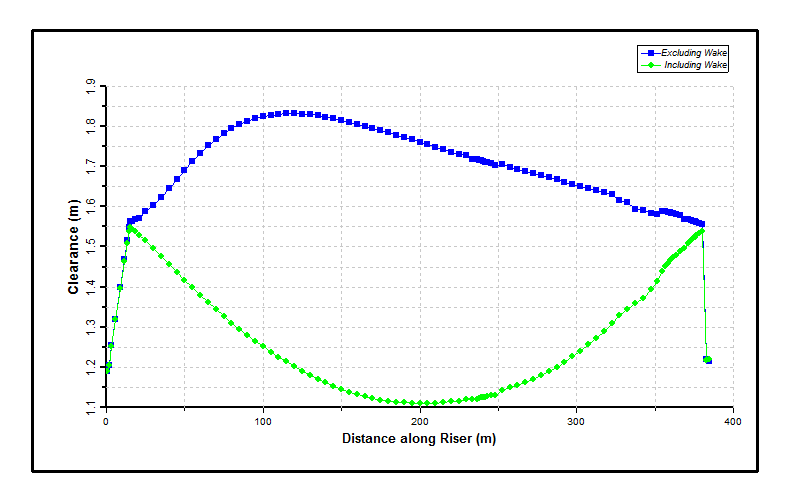

Production/Drilling Riser Clearance
