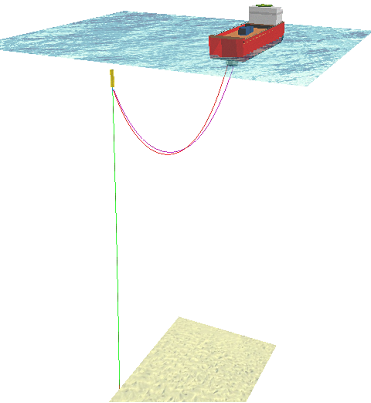

This example considers a hybrid riser system situated in 700m of water. The analysis compares the behaviour of the model, including and excluding the effects of clashing. The analysis sequence consists of an initial static analysis to determine the overall static configuration, followed by a dynamic analysis of the system subject to wave loading and first-order vessel motions. The overall hybrid riser system configuration is shown in the figure below.
