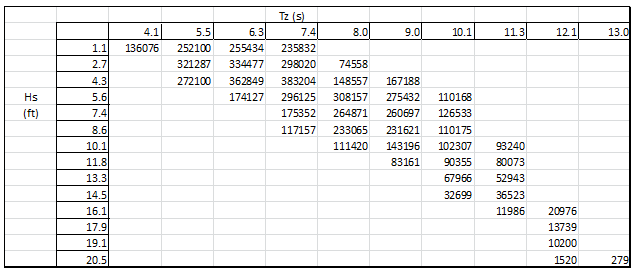

Wave Scatter Diagram

A total of 43 seastates are contained within the scatter diagram, representing various combinations of significant wave height Hs and mean zero crossing period Tz. The fatigue seastate data consists of the names of the dynamic analyses and the percentage occurrences of the associated seastates.

Wave Scatter Diagram
