Soil structure interaction is modelled by the specification of force-deflection (P-y) curves which define the soil resistance to lateral motion of the structure over a range of depths below the mudline. The figure below presents an illustrative sample of the P-y curve data used in this example.

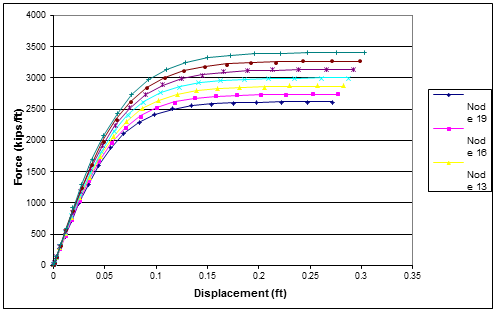

Sample P-y Curves
